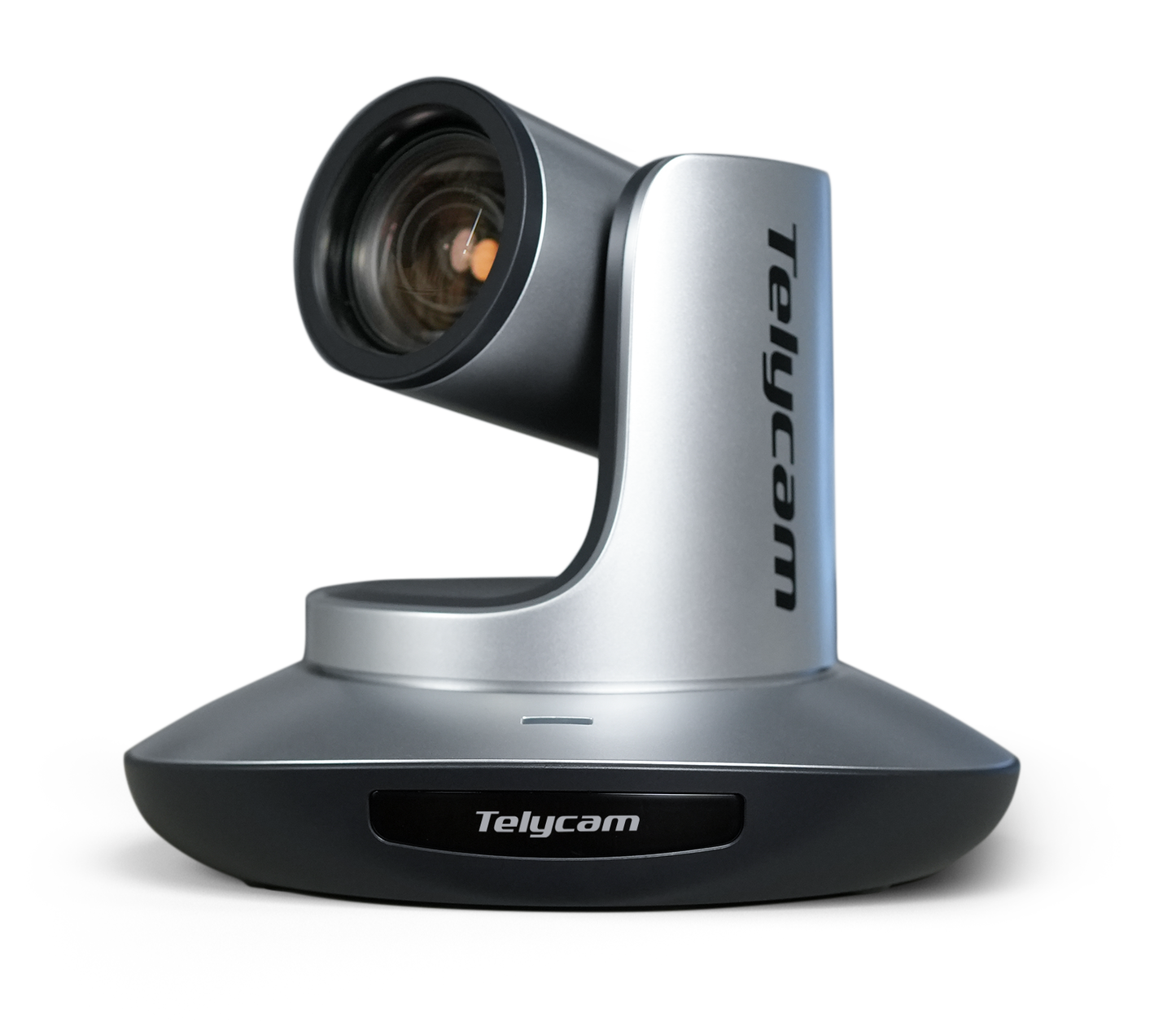

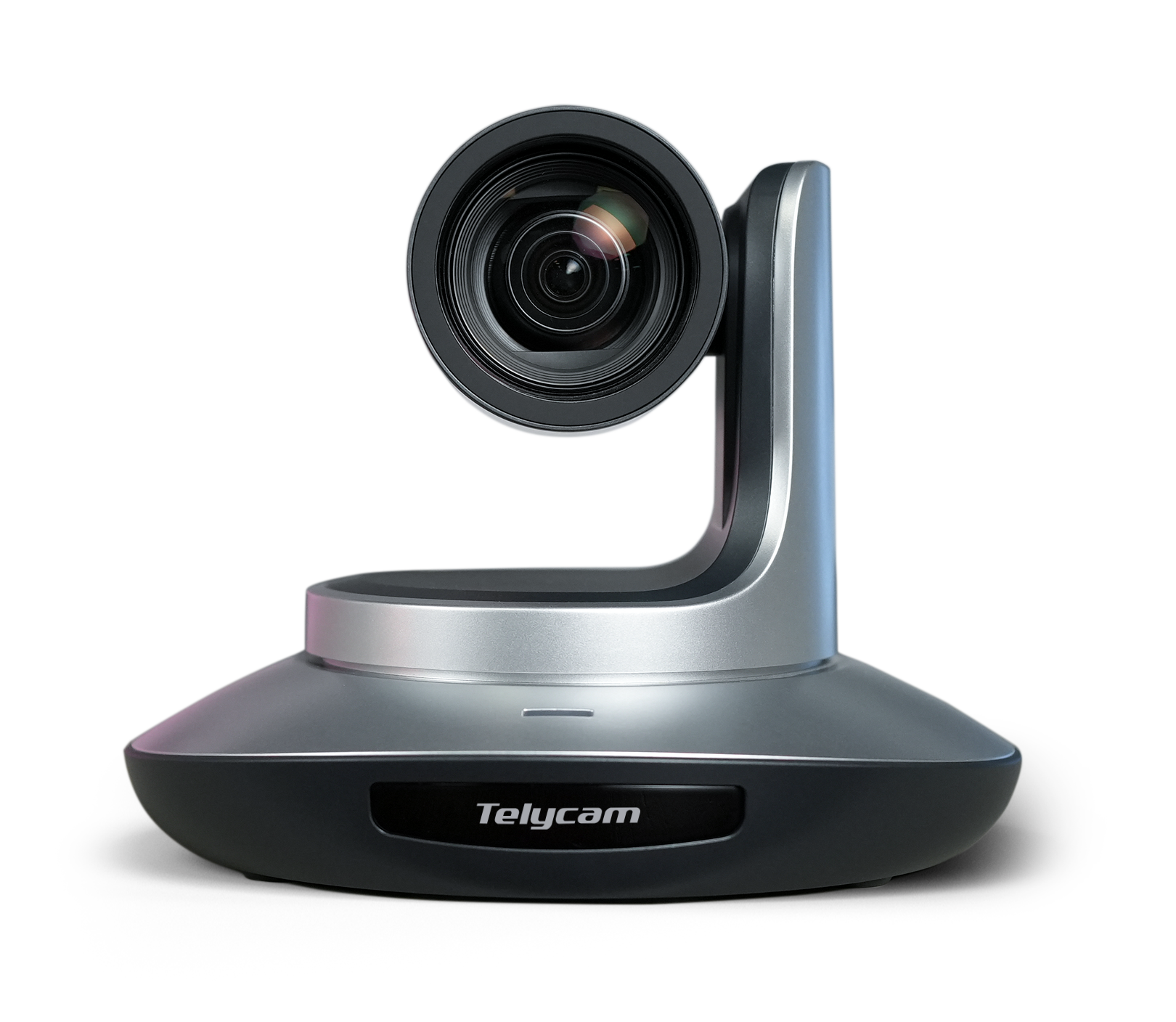

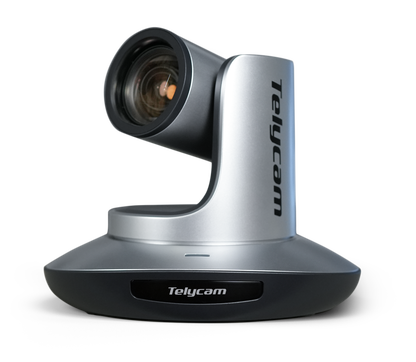

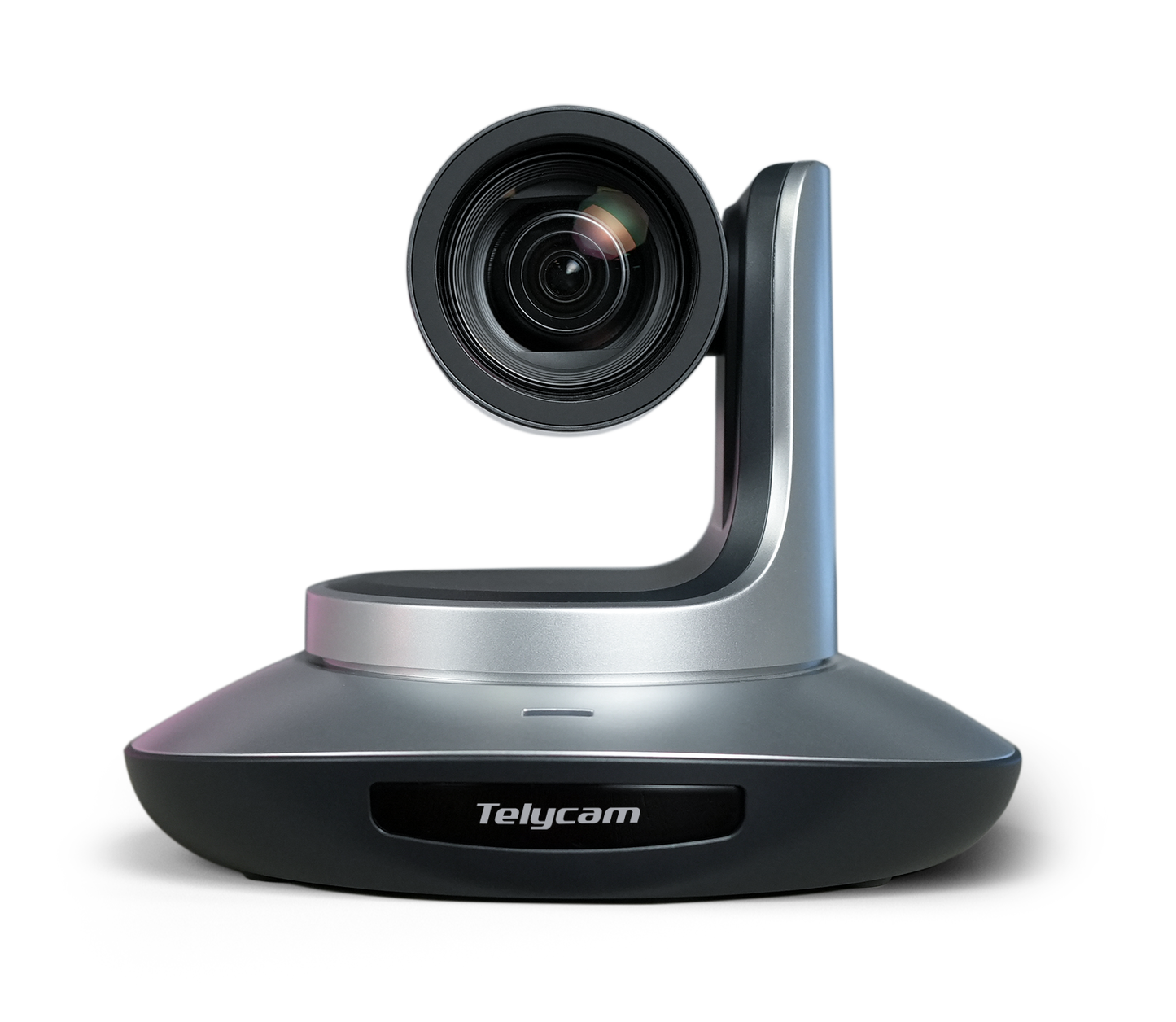

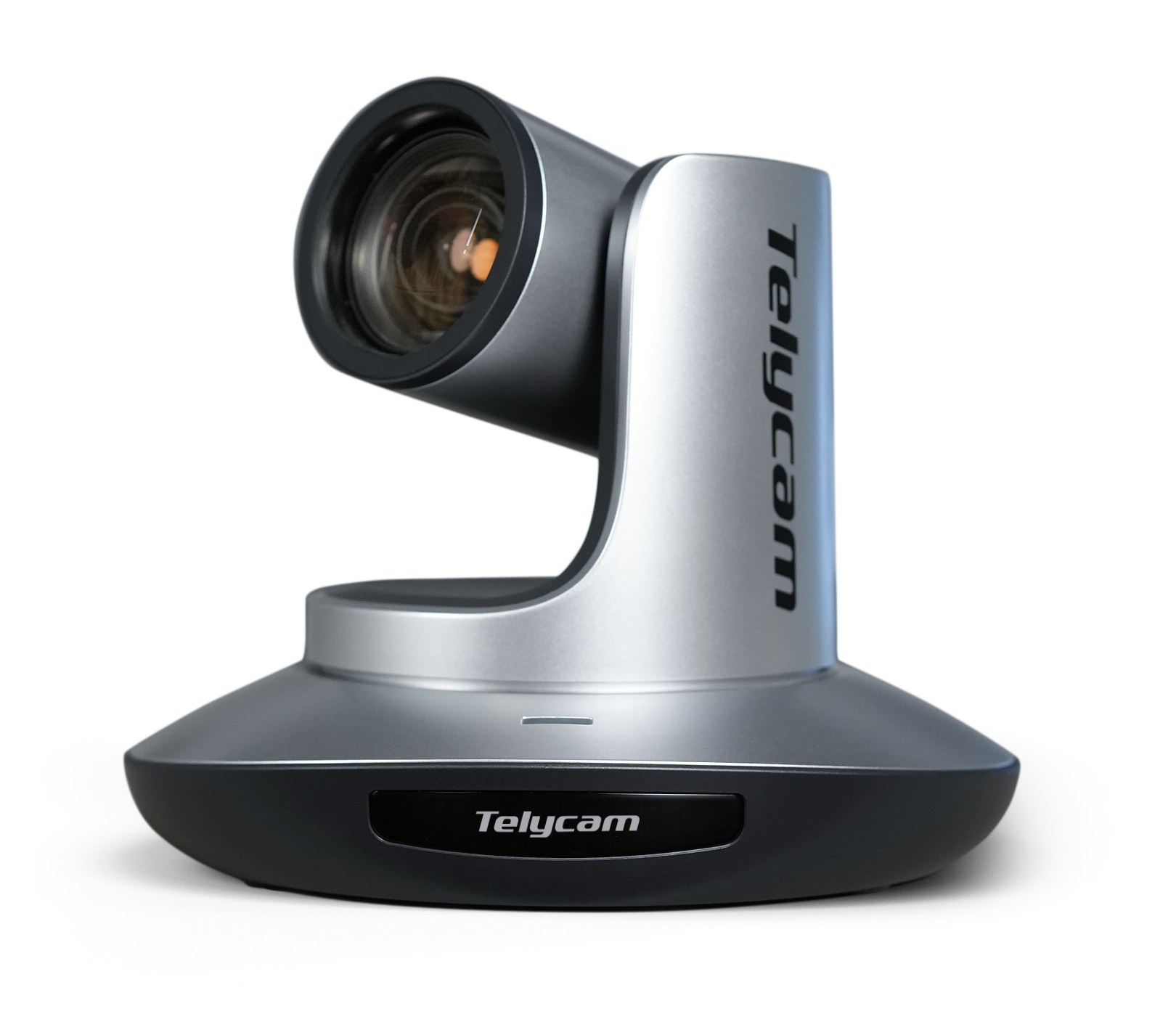

Meet+ 12/20-U3 - USB PTZ Camera for Large or Middle Meeting Room

Meet+ 12/20-U3 - USB PTZ Camera for Large or Middle Meeting Room

$739.00 USD
$739.00 USD
Sale Sold out
Optical Zoom

To Make Collaboration Easy and Affordable Meet+ 12-U3/Meet+ 20-U3 is ideal used for video conferencing in the middle and large meeting room.

It is equipped with 1/2.8"sensor and high quality 12X/20X optical lens, to output crisp images with realistic color, even in low light or high contrast of brightness and darkness via3.0 port.

USB3.0 can output different resolutions, up to 1080p60.

It works with any of your favorite conferencing software, totally plug and play, and user-friendly.

View full details

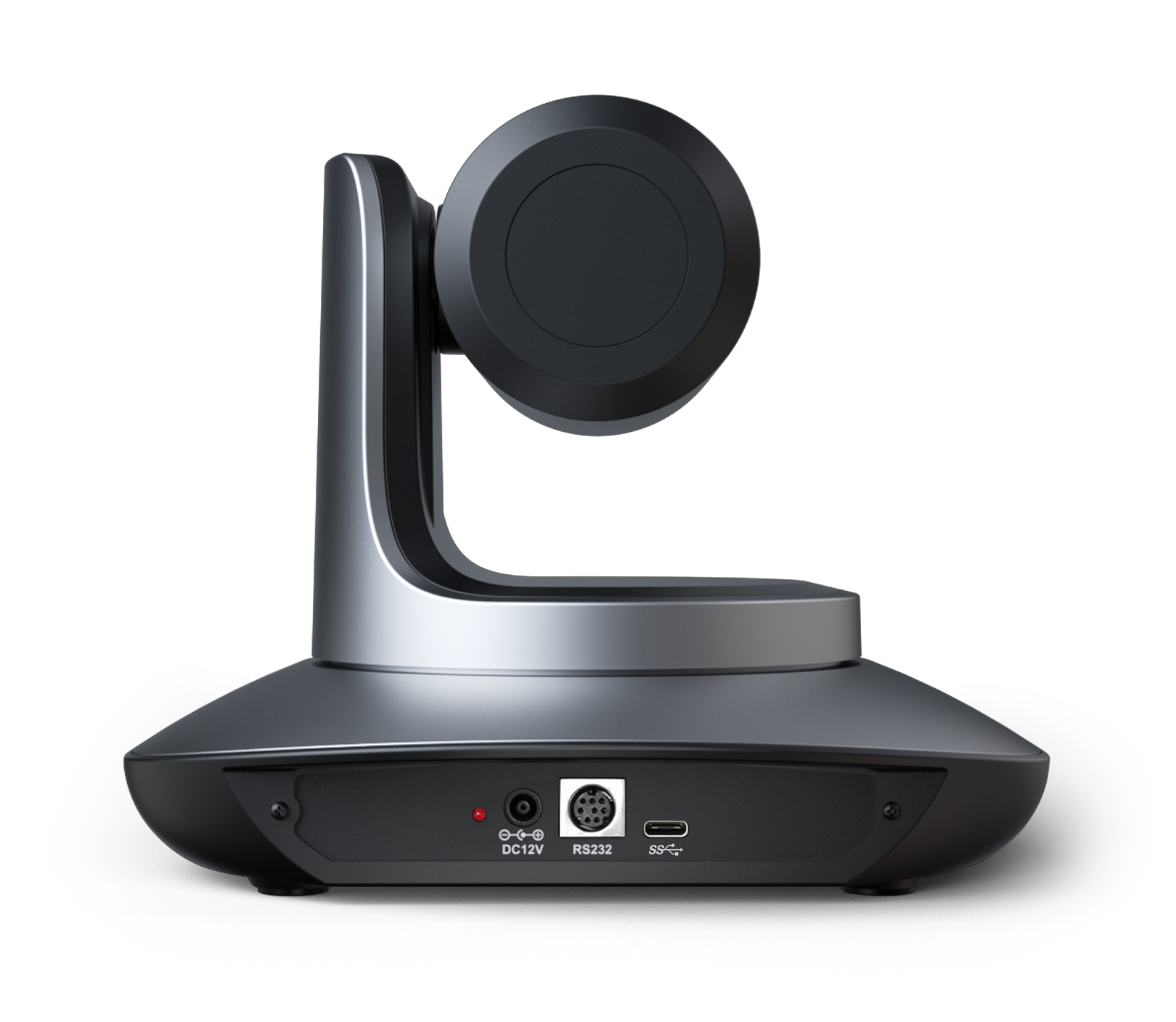

USB 3.0: Fast Transmission, Instant Plug-and-Play

The Meet+ 12-U3/Meet+ 20-U3 webcam features USB 3.0 video output for smooth visuals and fast plug-and-play functionality. No need to install drivers or software – simply connect it to your computer’s USB port for automatic recognition as your video and audio source. Telycam Meet+ 12-U3/Meet+ 20-U3 PTZ cameras utilize USB 3.0 for fast video transmission and minimal latency, ensuring reliable, top-quality video for live streaming, video conferencing, and recording right out of the box.

Zoom Image

1080p60 FHD Output

Equipped with advanced image processing, cutting-edge algorithms, a 1/2.8-inch sensor, and a high-quality lens, it outputs crystal clear images up to 1080p60 FHD resolution.

Plug-n-Play
Take Control of Your Privacy

Power over USB

The Meet+ 12-U3/Meet+ 20-U3 powers directly via a USB 3.0 port, eliminating the need for a power supply adaptor. This simplifies deployment with a single cable for power, video, and control.

12X/20X Optical Zoom

Uses truly 12X optical zoom lens with 72.5-degree wide angle FOV or 20X optical zoom lens with 60-degree wide angle FOV, fast and accurate focus performance to capture details in large and middle room.

12X
20X
Smooth and Silent PTZ Movement

Smooth and Silent PTZ Movement

Thanks to the compact and sophisticated mechanism design, and accurate driven algorithms, Meet+ 12-U3/Meet+ 20-U3 can move very smoothly without noise at variable pan/tilt/zoom speed.

Effortless Integration with Your Favorite Platform

The Meet+ 12-U3/Meet+ 20-U3 webcam seamlessly works with a wide range of popular virtual meeting platforms, including Microsoft Teams, Zoom, Webex, Google Meet, and Skype. This means you can hop on calls with colleagues, friends, or family using your preferred platform without worrying about compatibility issues. No matter which platform you choose, the Meet+ 12-U3/Meet+ 20-U3 will ensure you’re seen and heard clearly.

Gallery image 1
Gallery image 2
Gallery image 3
Gallery image 4
Gallery image 5

Specifications

  • Meet+ 12-U3

    • Part NO. TLC-300-U3-12P

    • 1/2.8 inch, high-quality 2.4MP HD CMOS sensor

    • 12X optical zoom, 12x digital zoom

    • Lens: f=3.92~46.8mm, F1.6~F2.8

    • Horizontal View Angle: 72.5°(wide)~6.48°(Tele)

    • Vertical Viewing Angle: 42.72°~3.66

    • Diagonal Viewing Angle: 78.58°~7.42°

    • Minimum Working Distance: Wide: 1m; Tele: 1.5m

    • S/N Ratio: ≥50dB

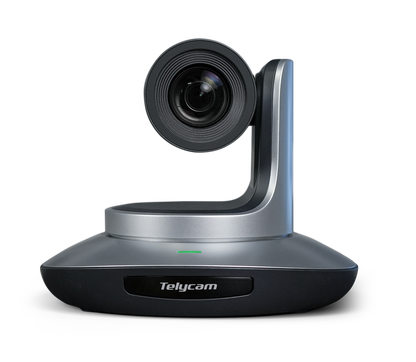

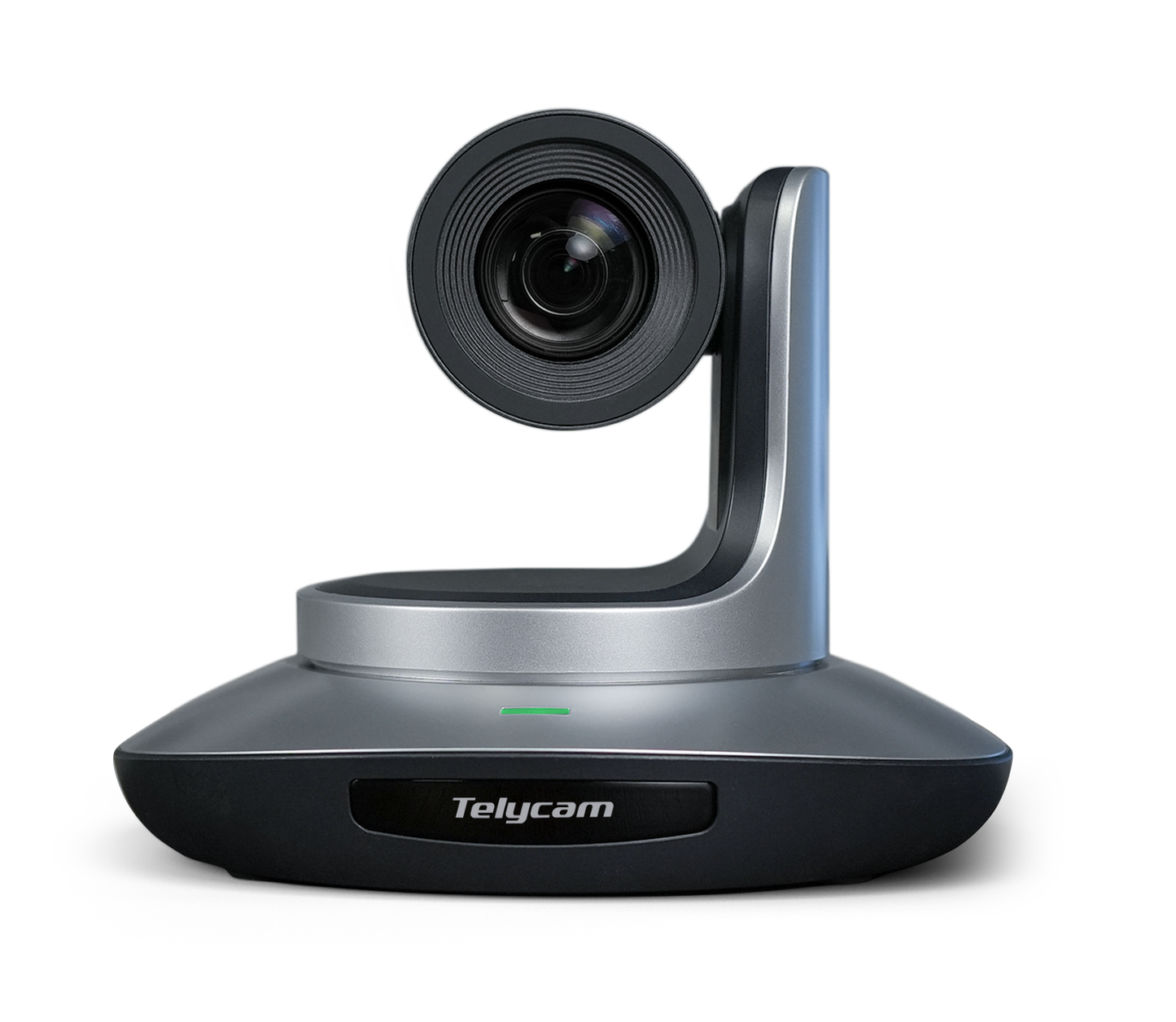

  • Meet+ 20-U3

    • Part NO. TLC-300-U3-20P

    • 1/2.8 inch, high-quality 2.4MP HD CMOS sensor

    • 20X optical zoom, 12x digital zoom

    • Lens: f=4.9~98mm, F1.5~F3.0

    • Horizontal View Angle: 60°(Wide)~3.2°(Tele)

    • Vertical Viewing Angle: 32.2°~1.8°

    • Diagonal Viewing Angle: 61°~3.64°

    • Minimum Working Distance: Wide: 1m; Tele: 1.5m

    • S/N Ratio: ≥50dB

  • Video Format

    USB 3.0：
    YUY2:
    1920*1080P60/50/30/25;
    1280*720P60/50/30/25;
    1024*576P60/50/30/25;
    640*480P60/50/30/25;
    640*360P60/50/30/25

    USB 2.0：
    YUY2:
    1280*720P25;
    1024*576P30/25;
    640*480P50/30/25;
    640*360P60/50/30/25

  • Image Parameters

    • Noise Reduction: 2D/3D

    • Minimum lux: 0.7lux(50 IRE Max AGC, 1/30, F1.8)

    • White Balance: Auto/Manual/indoor/Outdoor/
    Push/Sodium/Fluorescent

    • Focus: Auto/Manual

    • Iris: Auto/Manual

    • Electronic Shutter: Auto/Manual

    • BLC: Supported

  • Pan/Tilt Movement

    • Pan Rotation Angle: -170°~+170°

    • Tilt Rotation Angle: -30°~+90°

    • Pan Rotation Speed: 0°~120°/s

    • Tilt Rotation Speed: 0°~80°/s

    • Preset: 128 presets via RS232, 10 presets via remote controller

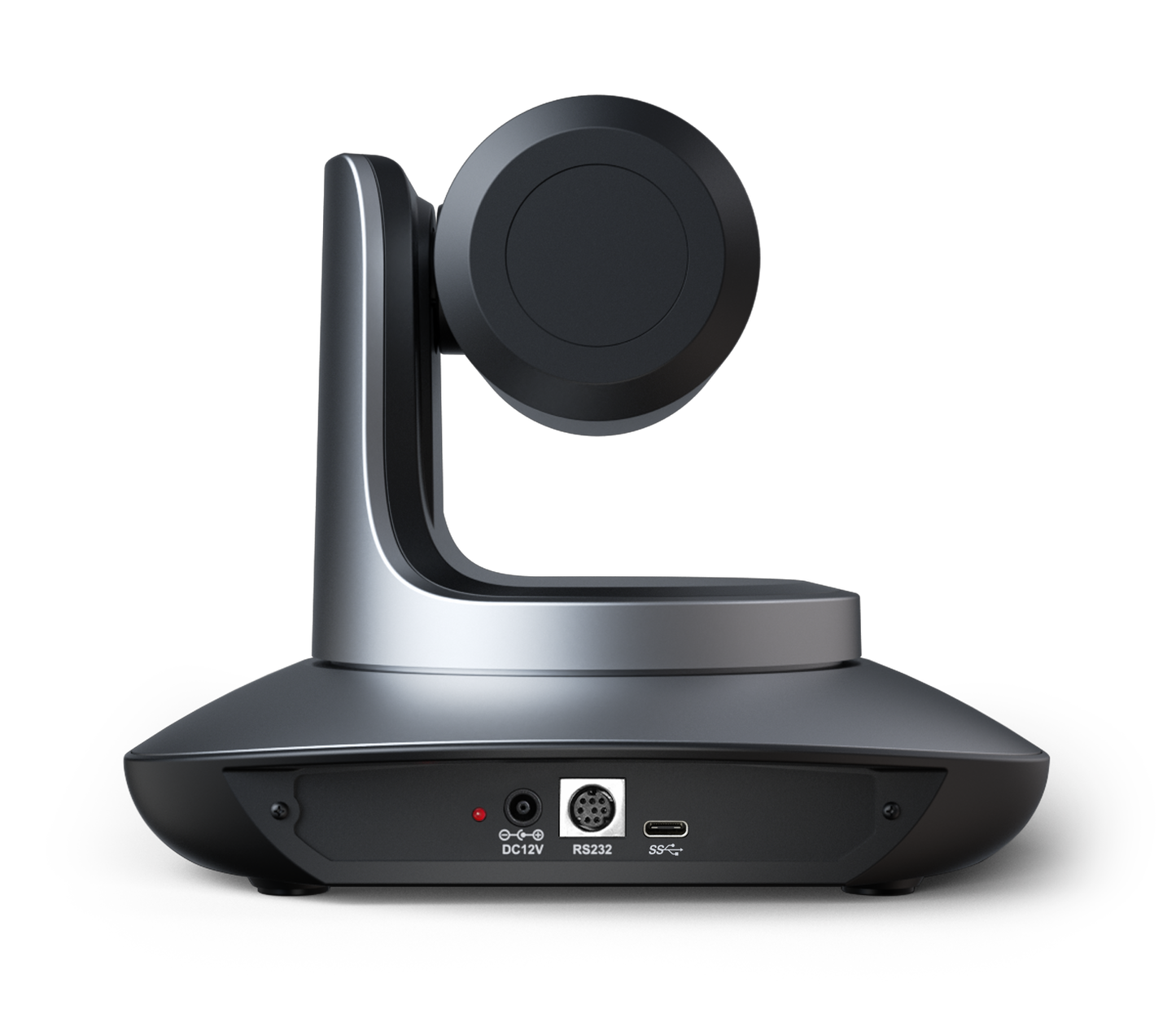

    • Control: RS232/RS485/USB/Remote Controller

    • Video Port: USB 3.0

  • General

    • Input Voltage: 5V 1000mA(via USB 3.0)/DC: 12V 2A(via Power Adapter)

    • Power Consumption: DC: 12V 2A(Pmax=8W)

    • Operating Temperature: -10℃~50℃

    • Operating Humidity: ≤80%

    • Color: Silver

    • Camera Dimension: 220mm×190mm×173mm

    • Package Dimension: 32x30x31cm

    • Package Content: Camera, Remote Controller, RS232 cable, USB3.0 cable,
    Power Supply
